How to upgrade your home's switchboard for modern electrical demands

Switchboards in older homes were installed before split systems, induction cooktops, solar and EV chargers were common. This guide covers the signs a board needs upgrading, what the work involves and what drives the price.

Licence REC 135414.7 from 12 Google reviews

Upgrading a switchboard, step by step

Signs your switchboard needs upgrading

Your switchboard is due for an upgrade if it still has ceramic rewireable fuses instead of circuit breakers, has no safety switches or only one covering some circuits, trips when several appliances run at once, or has no spare space for a new circuit such as an air conditioner, oven or EV charger. Older meter boards in homes built before 1990 may also have a backing panel that contains asbestos.

Scorch marks, a burning smell, buzzing or a board that feels warm are a different matter. Those are safety problems: call an electrician now rather than planning an upgrade for later.

What a modern switchboard gives you

A new board replaces fuses with circuit breakers, adds safety switches so the power and lighting circuits are protected against electric shock, and leaves room for future circuits. Each circuit is labelled, so you know what every breaker controls.

A safety switch cuts the power in a fraction of a second when it detects current leaking to earth, which is what happens when a person touches a live part. An old fuse only protects the wiring from overload. It does nothing to stop a shock.

Plan for what you will add

Tell the electrician what you plan to add in the next few years, not just today. A split system or two, an induction cooktop, a pool pump, solar panels, a battery or an EV charger each add load to the board and may need their own circuits. Allowing for them in the upgrade costs less than adding space later.

If the home's total load is close to what the supply can carry, the electrician may recommend upgrading the main supply. That involves Energex and your electricity retailer, and the electrician can explain the steps.

Mitsubishi Electric split system outdoor unit with its wall-mounted isolator on a face brick wall in Warner
Air conditioner circuit and isolator, Warner

What drives the cost of a switchboard upgrade

No two boards are the same, so prices vary. The main factors are the number of circuits and safety switches needed, whether the meter board itself needs replacing (including safe removal of an asbestos backing), whether the main supply or metering needs upgrading, and how easy the board and cable routes are to reach.

Existing faults matter too. Once safety switches are fitted, any circuit with a hidden fault will trip them, and the fault has to be found and fixed before the new board will hold. A written quote after an inspection is the only reliable figure. Tom inspects the board and tests the circuits before he quotes, so the price covers what the job actually needs.

How the upgrade is done

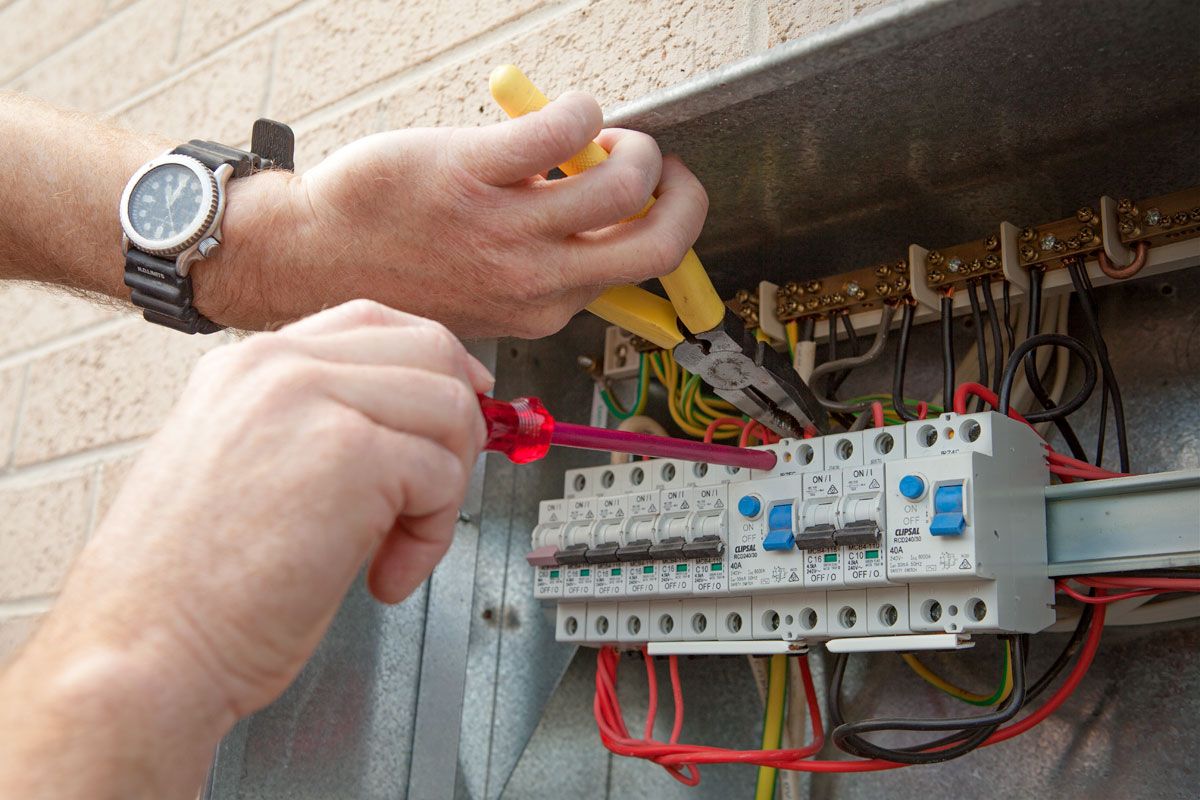

On the day the power is off for several hours, so plan around the fridge, any medical equipment and anyone working from home. The electrician isolates the supply, removes the old board, fits the new enclosure, breakers and safety switches, reconnects and labels every circuit and checks the earthing.

Every circuit is then tested for insulation resistance, earth continuity and polarity, and each safety switch is trip tested. You receive the certificate of testing and safety that Queensland requires for electrical work, and a labelled board that shows what each breaker controls.

Getting your board checked

If your board shows any of the signs above, or you are planning a split system, solar or an EV charger, have it inspected first. Tom is a licensed electrical contractor, licence REC 13541, based in Warner. He checks the board, explains what it needs in plain terms and quotes in writing before any work starts.

Common questions

Something not covered? Call Tom on 0401 456 987.

How long does a switchboard upgrade take?

A standard switchboard upgrade in a house usually means the power is off for several hours, and the work is normally finished in a day. It can take longer if the meter board needs replacing, if an asbestos backing has to be removed, or if faults show up once the new safety switches are fitted. The electrician can give you a time frame after inspecting the board.

Do I need a switchboard upgrade to install a split system?

Not always. A split system needs its own circuit from the switchboard, so the board needs a spare space and enough capacity for the extra load. Many newer boards have both. Older boards with ceramic fuses, no spare space or no safety switches usually need work first. Tom checks the board when he quotes a split system, so any switchboard work is in the same written quote.
